Alteon Models and Technical Specifications

Radware's Application Delivery Platforms

Alteon ADC solution delivers a set of physical appliances, virtual appliances and cloud-based form factors, all sharing the same set of functionality and modules, offering the widest throughput range in the industry, from 200Mbps to 320Gbps.

On top of all other Layer 4-7 application delivery functions, performance optimization and security functionality, the Alteon D-line products deliver enhanced traffic encryption processing performance, which is available both through its optimized software and the latest hardware acceleration cards.

Alteon virtual appliances and cloud appliances are exactly the same, providing identical functionality as the physical Alteon appliances and industry-leading performance and traffic encryption capacities.

All Alteon appliances, starting at the entry level, support virtualization with high density virtual ADC instances per device to enable any size organization to benefit from the cost saving associated with virtualization and ADC consolidation.

The Alteon virtual appliance form factor is also available in a special version for DevOps teams, enabling instant deployment in any development environment and consumption of advanced ADC functionality via out-of-the-box wizards and automation scripts.

Intuitive Licensing Packages

The new Alteon D-line provides three different licensing packages (available on each of its models and throughput levels), to address different deployment scenarios and needs:

The Deliver Package

For applications that require high performance ADCs with advanced layer 4-7 ADC functionality.

The Perform Package

For deployments requiring performance optimization, advanced application performance monitoring, global server load balancing & link load balancing, and automated/optimized ADC service operation.

The Secure Package

For applications that require the most advanced protection (with an embedded WAF module, authentication gateway) and SSL processing from perimeter security devices (with its embedded SSL inspection module).

Alteon D-Line Platforms

Platform Throughput Levels Form Factor vADC Density
Alteon D-9800 240Gbps, 320Gbps Physical Appliance 72
Alteon D-8420 100Gbps, 160Gbps Physical Appliance 100
Alteon D-7220 200Gbps Physical Appliance 64
Alteon D-7612 160Gbps, 200Gbps Physical Appliance 64
Alteon D-6420 60Gbps, 80Gbps Physical Appliance 64
Alteon D-6024 30Gbps, 60Gbps, 80Gbps Physical Appliance 32
Alteon D-5820 12Gbps, 22Gbps, 40Gbps Physical Appliance 10
Alteon D-5424 12Gbps, 22Gbps, 40Gbps Physical Appliance 10
Alteon D-5208 6Gbps, 12Gbps, 26Gbps Physical Appliance 24
Alteon D-4208 6Gbps, 12Gbps Physical Appliance 1
Alteon VA 200Mbps, 500Mbps, 1Gbps, 3Gbps, 6Gbps, 10Gbps, 17Gbps Virtual Appliance 1
Alteon VA for NFV 40Gbps, 100Gbps, 160Gbps, 200Gbps, 225Gbps Virtual Appliance 1

Alteon NG Platforms

Platform Throughput Levels Form Factor vADC Density
Alteon NG 8420 100Gbps, 160Gbps Physical Appliance 100
Alteon NG 6420 30Gbps, 40Gbps, 80Gbps Physical Appliance 64
Alteon NG 6024 30Gbps, 40Gbps, 60Gbps, 80Gbps Physical Appliance 32
Alteon NG 5208 6Gbps, 12Gbps, 26Gbps Physical Appliance 24
Alteon NG 5224 5Gbps, 10Gbps, 16Gbps Physical Appliance 24

Additional Alteon ADC Platforms

Platform Throughput Levels Form Factor vADC Density
Alteon 5412 8Gbps, 12Gbps, 16Gbps, 20Gbps Physical Appliance 28

*Only available for Alteon VA on VMware Hypervisor



Alteon ADC Platforms

Alteon 9 Series

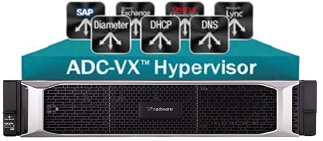

Alteon D-9800

Platform Highlights

Learn moreD-line Tech Specs


  • Super high-performance SSL with support for latest encryption standards (i.e. ECC)*
  • Designed for carriers, mobile operators and very large enterprises
  • High-end performance application delivery appliance
  • On-demand 320 Gbps throughput scalability
  • Carrier-grade reliability
  • 192GB memory
  • Provides compression and caching
  • Supports ADC-VX with up to 72 vADCs
  • 8 ports of 100GE (QSFP28) which supports on QFP+ and SFP+
  • USB interface for software installation and recovery
  • Dual AC/DC power supply

* Hardware acceleration for ECC cyphers and enhanced capacity, is only available for Alteon D-line products

Alteon D 9800


Alteon 8 Series

Alteon NG 8420

Alteon D-8420, Alteon NG 8420

Platform Highlights

Learn moreD-line Tech Specs

Learn moreNG Tech Specs

  • High performance SSL with support for latest encryption standards (i.e. ECC)*
  • Designed for carriers, mobile operators and large enterprises
  • High-end performance application delivery appliance
  • On-demand 100 & 160 Gpbs throughput scalability
  • Carrier-grade reliability
  • Supports ADC-VX with up to 100vADCs
  • 128GB up to 256GB memory
  • Provides compression and caching
  • 4 ports of 40GE (QSFP+), 20 ports of 10GE / GE (SFP+)
  • USB interface for software installation and recovery
  • Dual AC/DC power supply

* Hardware acceleration for ECC cyphers and enhanced capacity, is only available for Alteon D-line products

Alteon 7 Series

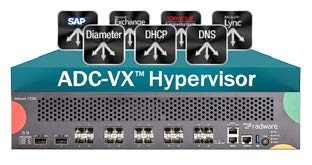

Alteon D-7220

Platform Highlights

D-line Tech Specs Learn more

  • High performance SSL with support for latest encryption standards (i.e. ECC)*
  • Designed for carriers, mobile operators and large enterprises
  • High-end performance application delivery appliance
  • On-demand 200 Gpbs throughput scalability
  • Carrier-grade reliability
  • Supports ADC-VX with up to 64vADCs
  • 96GB up to 192GB memory
  • Provides compression and caching
  • 2 ports of 100GE (QSFP28), 20 ports of 10GE / 25GE (SFP28)
  • USB interface for software installation and recovery
  • Dual AC/DC power supply
Alteon D 7220
Alteon D 7612

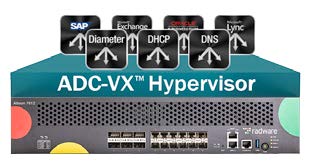

Alteon D-7612

Platform Highlights

Learn more D-line Tech Specs

  • High performance SSL with support for latest encryption standards (i.e. ECC)*
  • Designed for carriers, mobile operators and large enterprises
  • High-end performance application delivery appliance
  • On-demand 160 & 200 Gpbs throughput scalability
  • Carrier-grade reliability
  • Supports ADC-VX with up to 64vADCs
  • 96GB up to 192GB memory
  • Provides compression and caching
  • 6 ports of 40GE (QSFP+), 12 ports of 10GE / GE (SFP+)
  • USB interface for software installation and recovery
  • Dual AC/DC power supply

Alteon 6 Series

Alteon D-6420, Alteon NG 6420

Platform Highlights

D-line Tech Specs Learn more

NG Tech Specs Learn more

  • High performance SSL with support for latest encryption standards (i.e. ECC)*
  • Designed for carriers, mobile operators and very large enterprises
  • High-end performance application delivery appliance
  • On-demand 30-80Gbps throughput scalability
  • On-demand service scalability
  • Supports ADC-VX with up to 48 vADCs
  • Provides compression and caching
  • 4 ports of 40GE (QSFP+), 20 ports of 10GE / GE (SFP+)
  • RJ45 serial connection
  • USB interface for software installation and recovery
  • Front to back fans suitable for new data center design
  • Dual AC/DC power supply

* Hardware acceleration for ECC cyphers and enhanced capacity, is only available for Alteon D-line products

Alteon NG 6420
Alteon NG 6024

Alteon D-6024, Alteon NG 6024

Platform Highlights

Learn moreD-line Tech Specs

Learn moreNG Tech Specs

  • High performance SSL with support for latest encryption standards (i.e. ECC)*
  • Designed for carriers, mobile operators and very large enterprises
  • High-end performance application delivery appliance
  • On-demand 30-80Gbps throughput scalability
  • On-demand service scalability
  • Supports ADC-VX with up to 32 vADCs
  • Provides compression and caching
  • 24 ports of 10GE / GE (SFP+)
  • Two redundant management ports providing out-of-band highly reliable management interfaces with enhanced security
  • RJ45 serial connection
  • USB interface for software installation and recovery
  • Front to back fans suitable for new data center design
  • Dual AC/DC power supply

* Hardware acceleration for ECC cyphers and enhanced capacity, is only available for Alteon D-line products

Alteon 5 Series

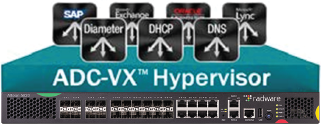

Alteon D-5820

Platform Highlights

Learn more D-line Tech Specs


  • High-performance SSL with support for latest encryption standards (i.e. ECC)
  • High-performance application delivery appliance covering wide throughput range: 12 to 40 Gbps throughput capacity
  • On-demand throughput scalability: 12, 22 & 40 Gbps throughput licenses
  • On-demand service scalability
  • 8 x 10 GbE SFP+, 12 x 10 GbE SFP, 8 x 1GbE RJ45
  • 32GB memory
  • Supports ADC-VX with up to 10 vADCs
  • USB interface for software installation and recovery
  • Hot-swappable dual AC / DC power supply
  • Suitable for mid-size to large enterprises that require a high-performing solution
  • Front-to-back fans suitable for new data center design
Alteon D 5820
Alteon D 5424

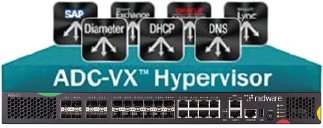

Alteon D-5424

Platform Highlights

Learn more D-line Tech Specs

  • High-performance SSL with support for latest encryption standards (i.e. ECC)
  • High-performance application delivery appliance covering wide throughput range: 12 to 40 Gbps throughput capacity
  • On-demand throughput scalability: 12, 22 & 40 Gbps throughput licenses
  • On-demand service scalability
  • 4 x 10 GbE SFP+, 16 x 10 GbE SFP, 8 x 1GbE RJ45
  • 32GB memory
  • Supports ADC-VX with up to 10 vADCs
  • USB interface for software installation and recovery
  • Hot-swappable dual AC / DC power supply
  • Suitable for mid-size to large enterprises that require a high-performing solution
  • Front-to-back fans suitable for new data center design

Alteon D-5208, Alteon NG 5208

Platform Highlights

Learn moreD-line Tech Specs

Learn moreNG Tech Specs

  • High performance SSL with support for latest encryption standards (i.e. ECC)*
  • High performance application delivery appliance covering wide throughput range: 6 to 26 Gbps throughput capacity
  • On-demand throughput scalability: 6, 12 & 26 Gbps throughput licenses
  • Supports ADC-VX with up to 24 vADCs
  • On-demand service scalability
  • 2 x 10 GbE SFP+, 8 x 1GbE RJ45
  • USB interface for software installation and recovery
  • Hot swappable Dual AC/DC power supply
  • Suitable for mid-size to large enterprises that require a high-performing solution
  • High performance compression, and caching
  • Front-to-back fans suitable for new data center design

* Hardware acceleration for ECC cyphers and enhanced capacity, is only available for Alteon D-line products

Alteon NG 5208
Alteon NG 5224

Alteon NG 5224

Platform Highlights

Learn more Tech Specs

  • High performance application delivery appliance covering wide throughput range: 5 to 16 Gbps throughput capacity
  • On-demand throughput scalability: 5, 10 & 16 Gbps throughput licenses
  • Supports ADC-VX with up to 24 vADCs
  • On-demand service scalability
  • 2 x 10 GbE SFP+, 16 x 1 GbE SFP, 8 x 1GbE RJ45
  • Two redundant management ports providing out-of-band highly reliable management interfaces with enhanced security
  • USB interface for software installation and recovery
  • Single or Dual AC/DC power supply
  • Suitable for mid-size to large enterprises that require a high-performing solution
  • Provides SSL acceleration, compression, and caching
  • Front-to-back fans suitable for new data center design

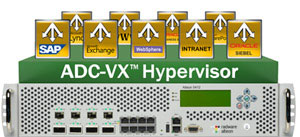

Alteon 5412

Platform Highlights

Learn more Tech Specs

  • High performance application delivery appliance – up to 20 Gbps throughput capacity
  • On-demand throughput scalability: 8, 12, 16 & 20Gbps throughput licenses
  • Supports ADC-VX with up to 28 vADCs
  • On-demand service scalability
  • 4 x 10 Gigabit Fiber Ports (XFP pluggable optics), 4 x Gigabit Fiber Ports (SFP-GBIC Mini), 8 x Gigabit Ethernet Ports
  • Two redundant management ports providing out-of-band highly reliable management interfaces with enhanced security
  • LCD panel displaying key statistics
  • USB interface for software installation and recovery
  • Dual, redundant AC/DC power supply
  • Suitable for very large enterprise and carrier data centers that require high-end throughput levels
  • Provides SSL acceleration, compression, and caching
Alteon 5412


Alteon 4 Series

Alteon NG 4408

Alteon D-4208

Platform Highlights

Learn moreD-line Tech Specs

  • High performance application delivery appliance covering wide throughput range: 6 to 12 Gbps throughput capacity
  • High-performance SSL with support for latest encryption standards (i.e. ECC)*
  • On-demand service scalability
  • 2 x 10 GbE SFP+, 8 x 1GbE RJ45
  • RJ45 serial connection
  • USB interface for software installation and recovery
  • Hot-swappable dual AC / DC power supply
  • Suitable for mid-size enterprises that require a high-performing solution
  • Front-to-back fans suitable for new data center design

Alteon Virtual Appliances

Alteon VA

Platform Highlights


  • Runs on any general purpose server
  • Supports all leading hypervisors: VMware ESX/ESXi, KVM, Open XEN and Microsoft Hyper-V
  • Several Alteon VA instances can run on a single physical server
  • On-demand throughput scalability: 200Mbps, 500Mbps, 1Gbps, 3Gbps, 6Gbps, 10Gbps, 17Gbps throughput licenses
  • Fully equivalent (functionality wise) to any other Alteon physical appliance and platform
  • Suitable for small, medium and large datacenters
  • Provides SSL acceleration, compression, and caching
  • Also available as a public cloud service on Amazon’s AWS and on Microsoft Azure

*Only available for Alteon VA on VMware Hypervisor

Alteon VA
Alteon VA for NFV

Alteon VA for NFV

Platform Highlights


  • Runs on commercially off the shelf x86 server
  • Complete integration with NFV based infrastructure virtualization and orchestration frameworks (KVM, OpenStack)
  • NFV compliant to provide traffic steering and load balancing capabilities of up to 200Gbps per Alteon VA instance
  • On-demand throughput scalability: 40Gbps and 200Gbps throughput licenses
  • Fully equivalent (functionality wise) to any other Alteon physical appliance and platform
  • Suitable for large enterprises, online businesses, mobile and fixed line carriers
View Additional Resources

Contact Radware Sales

Assess your needs and understand which products are best

Contact Us Now

Already a Radware Customer?

We're ready to help, whether you need support, additional services, or answers to your questions about our products and solutions.

Get Social

Connect with experts and join the conversation about Radware technologies.
