What is CoAP? Understanding the Constrained Application Protocol


In the intricate landscape of networking protocols, the Constrained Application Protocol—commonly referred to as CoAP—emerges as a cornerstone in enabling seamless communication within the realm of constrained networks and devices. Designed with a specific focus on efficiency and adaptability, CoAP addresses the unique challenges posed by resource-constrained environments, making it a pivotal player in the Internet of Things (IoT) ecosystem.

CoAP represents a web transfer protocol that is purpose-built to cater to the distinct requirements of constrained networks, where resources such as bandwidth, memory, and processing power are at a premium. Unlike traditional protocols that are often resource intensive, CoAP embodies a minimalist approach, striking an optimal balance between functionality and resource conservation.

In the expansive realm of the IoT, where an ever-growing multitude of devices interconnect and exchange data, CoAP stands out as a beacon of efficiency. It utilizes the User Datagram Protocol (UDP) as its underlying transport mechanism, capitalizing on its lightweight nature to facilitate fast and responsive communication. Moreover, CoAP employs a request-response model akin to HTTP, enabling seamless interaction between devices while preserving the valuable resources inherent to constrained networks.

CoAP's Role in IoT:

As the IoT continues to expand its horizons, encompassing diverse domains from smart homes to industrial automation, CoAP's significance becomes increasingly evident. Its ability to accommodate low-power devices, its efficient use of network resources, and its support for multicast communication render it an essential protocol for IoT implementations. CoAP's suitability for devices with limited computational capacity or intermittent connectivity aligns with the IoT's diverse array of devices, creating a seamless fabric of communication and interaction.

Reasons for the Implementation of CoAP in Modern Technology

Limitations of Traditional Protocols in Constrained Networks

The emergence of CoAP is a direct response to the limitations imposed by traditional protocols in the context of constrained networks and devices. Established protocols like HTTP, while efficient for traditional computing environments, prove to be ill-suited for the unique challenges posed by the IoT.

Traditional protocols are often characterized by their resource-intensive nature, which translates to increased overhead in terms of memory consumption, processing power, and bandwidth utilization. This drawback becomes particularly pronounced in constrained networks, where devices such as sensors, wearables, and embedded systems operate with stringent resource limitations. Furthermore, the constant connection and session management requirements of traditional protocols can be burdensome for devices with intermittent connectivity and low energy reserves, ultimately undermining their operational efficiency.

Addressing Limitations through CoAP

CoAP's development was motivated by the need to bridge the gap between IoT's resource-constrained environments and efficient communication. Unlike conventional protocols that rely on TCP/IP, CoAP operates over UDP, substantially reducing the overhead associated with connection establishment and management. This lightweight approach streamlines communication and enhances responsiveness, both of which are pivotal in IoT scenarios.

CoAP also employs a simple request-response model, akin to HTTP, but with modifications tailored for constrained networks. For instance, CoAP supports the concept of observe, enabling devices to subscribe to resource changes rather than polling for updates continuously. This reduces unnecessary data exchange and conserves power.

Benefits of CoAP for IoT

CoAP's role within the IoT ecosystem cannot be overstated. Its benefits are manifold:

Efficient Resource Utilization:
CoAP's minimalist design conserves vital resources, making it an ideal fit for low-power devices and networks.

Low Overhead:
CoAP's UDP-based nature results in lower overhead compared to protocols like HTTP, making it suitable for constrained environments.

Scalability:
CoAP's lightweight architecture enables seamless scaling, accommodating a multitude of devices across diverse IoT applications.

Intermittent Connectivity:
CoAP's support for asynchronous communication allows devices with sporadic connectivity to efficiently exchange data.

Multicast Communication:
CoAP supports multicast communication, enabling efficient dissemination of information to multiple devices simultaneously.

CoAP's genesis stems from the limitations of traditional protocols in constrained networks and devices. Its design philosophy centers around optimizing communication for resource-constrained environments, thereby making it an indispensable component of the IoT landscape. As IoT continues its rapid expansion, CoAP stands as a beacon of efficiency, facilitating seamless connectivity and communication among devices with diverse capabilities and limitations.

CoAP Functionality

The Role of CoAP in IoT Devices

CoAP plays a pivotal role in the realm of IoT devices by providing an efficient and lightweight communication framework. In the IoT ecosystem, where devices often operate with limited resources and intermittent connectivity, CoAP offers a streamlined mechanism for exchanging information. Its design caters to the constraints of low-power devices, enabling them to interact seamlessly while conserving energy and resources. CoAP's use of UDP for transport, along with its simple request-response model, makes it well-suited for IoT scenarios. This protocol empowers IoT devices to communicate effectively, whether it's for sending sensor data, receiving commands, or participating in complex interactions within the interconnected IoT fabric.

Message Distribution in CoAP

CoAP employs a flexible approach to message distribution that aligns with the diverse requirements of IoT devices. It supports both unicast and multicast communication. Unicast involves direct one-to-one communication between a client and a server. This is suitable for specific queries or commands targeted at a single device. On the other hand, multicast communication allows a single CoAP message to be sent to multiple devices simultaneously, reducing the need for separate individual communications. This is particularly advantageous in scenarios where multiple devices need the same information, such as updates or alerts. CoAP's multicast capability optimizes network usage and reduces the overall communication overhead, contributing to efficient data dissemination in IoT networks.

In essence, CoAP's role in IoT lies in its ability to facilitate efficient and adaptable communication among resource-constrained devices. Its support for both unicast and multicast communication further enhances its versatility, enabling IoT devices to exchange data and messages in a manner that aligns with the unique requirements of the diverse IoT landscape.

CoAP vs. HTTP

Similarities between CoAP and HTTP:

Request-Response Model:
Both CoAP and HTTP follow a request-response communication model. A client initiates a request, and the server responds with the appropriate data or action.

URI Structure:
Both protocols use a Uniform Resource Identifier (URI) structure to identify resources. This allows clients to specify the target resource in a standardized format.

Header Fields:
CoAP and HTTP both employ header fields to convey metadata about the request or response. These fields contain information such as content type, cache control, and more.

Differences between CoAP and HTTP:

    Transport Protocol:
    CoAP: CoAP is designed to work over the UDP (User Datagram Protocol), which is a connectionless, lightweight protocol. This makes CoAP suitable for constrained networks and devices with limited resources.
    HTTP: HTTP typically operates over TCP (Transmission Control Protocol), which ensures reliable and ordered communication. However, TCP's overhead can be unsuitable for resource-constrained environments.

    Header Size:
    CoAP: CoAP headers are smaller than HTTP headers, which is essential for minimizing overhead in environments with limited bandwidth and processing power.
    HTTP: HTTP headers can be more extensive due to their additional metadata and features, which can be inefficient in constrained scenarios.

    Efficiency:
    CoAP: CoAP is designed for efficiency in constrained environments. It supports features like tokenization, which allows lightweight state tracking, and observe, which reduces the need for frequent polling.
    HTTP: While HTTP provides more features and flexibility, its overhead and connection-oriented nature can be less efficient for IoT devices and constrained networks.

    Reliability:
    CoAP: CoAP offers optional reliability through Confirmable messages, where the sender receives acknowledgments for sent messages. This is suitable for scenarios where reliability is important but can be disabled for less critical communication.
    HTTP: HTTP, operating over TCP, inherently provides reliable communication with ordered delivery of messages.

    Usage and Scope:
    CoAP: CoAP is specifically designed for constrained networks and devices, making it well-suited for IoT applications where resources are limited.
    HTTP: HTTP is widely used in traditional computing environments and the web. It is more feature-rich and suitable for scenarios where robustness and reliability are essential.

In summary, both CoAP and HTTP serve as communication protocols, but they are tailored for different purposes. CoAP is optimized for resource-constrained networks and devices, making it a preferred choice for IoT applications. On the other hand, HTTP is versatile and used extensively in various contexts, but its overhead and connection-oriented nature can be less efficient for constrained scenarios.

CoAP vs. MQTT (Message Queuing Telemetry Transport)

Similarities between CoAP and MQTT:

IoT Communication Protocols:
Both CoAP and MQTT (Message Queuing Telemetry Transport) are communication protocols designed for the Internet of Things ecosystem. They enable efficient data exchange and communication between IoT devices and applications.

Lightweight and Minimal Overhead:
Both protocols are designed to be lightweight and have minimal overhead, making them suitable for resource constrained IoT devices that have limited processing power, memory, and bandwidth.

Publish-Subscribe Model:
CoAP and MQTT both support a publish-subscribe communication model, allowing devices to publish data to specific topics and other devices to subscribe to those topics to receive the data.

Quality of Service (QoS):
Both protocols offer various levels of Quality of Service (QoS) to ensure message delivery reliability. This allows for tailored communication based on the importance of the data being exchanged.

Differences between CoAP and MQTT:

Transport Protocol:
CoAP: CoAP operates over UDP (User Datagram Protocol), which is connectionless and lightweight. This makes it suitable for constrained networks and devices with limited resources.
MQTT: MQTT typically operates over TCP (Transmission Control Protocol), which provides reliable and ordered communication. However, this can result in higher overhead compared to UDP.

Message Type:
CoAP: CoAP supports both request-response interactions and asynchronous communication. It is designed to interact with resources directly, making it suitable for RESTful architectures.
MQTT: MQTT is centered around the publish-subscribe model, making it more suitable for scenarios where devices need to broadcast data to multiple subscribers.

Resource Interaction:
CoAP: CoAP is designed for direct interaction with resources and supports methods similar to HTTP, such as GET, PUT, POST, and DELETE.
MQTT: MQTT is primarily focused on the exchange of messages and doesn't provide direct resource manipulation capabilities like CoAP.

Usage and Scope:
CoAP: CoAP is well-suited for scenarios where direct interaction with resources and RESTful principles are important, such as monitoring and controlling IoT devices.
MQTT: MQTT is ideal for scenarios where devices need to publish data to multiple subscribers efficiently, such as real-time telemetry, monitoring, and remote sensing applications.

Topic Structure:
CoAP: CoAP uses the URI structure to identify resources, similar to HTTP.
MQTT: MQTT uses a topic-based structure to organize messages, allowing for more flexible and hierarchical message routing.

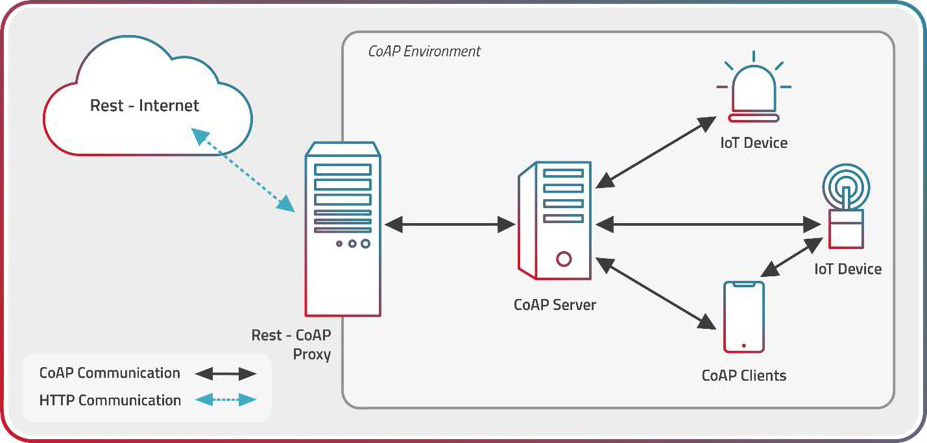

How Does CoAP Work?

How Does CoAP Work

CoAP operates as a lightweight and efficient communication protocol designed to facilitate seamless data exchange in constrained environments. Its technical underpinnings encompass a range of features that make it an ideal choice for Internet of Things (IoT) applications. Let's delve into the technical intricacies of how CoAP operates:

Request-Response Model:
CoAP operates on a request-response communication model, much like its counterpart HTTP. In this model, a client sends a CoAP request to a server, and the server responds with the requested data or action. CoAP's request methods mirror those of HTTP, including GET, PUT, POST, and DELETE. This familiar model simplifies interaction with resources, making it suitable for both IoT device-to-server communication and machine-to-machine interactions.

Use of UDP (User Datagram Protocol):
One of CoAP's distinguishing features is its use of UDP, a lightweight and connectionless transport protocol. This design choice is crucial in constrained environments where resources are scarce. Unlike TCP, which ensures reliable data delivery through a connection-oriented approach, UDP is connectionless and requires less overhead. While CoAP doesn't guarantee reliability by default, it offers three levels of reliability (Confirmable, Non-Confirmable, and Acknowledgement) to cater to various use cases.

Multicast Support:
CoAP incorporates support for multicast communication, enabling a single CoAP message to be sent to multiple recipients simultaneously. This is especially beneficial in scenarios where devices share common interests and need to receive the same information. Multicast communication reduces network traffic and efficiently disseminates data, a feature that aligns well with resource-constrained environments.

Observe Mechanism:
CoAP's observe mechanism adds a layer of efficiency to resource monitoring. With observe, a client can request to "observe" a resource's state. The server then sends periodic updates to the client whenever the resource changes. This approach eliminates the need for frequent polling, reducing unnecessary communication and conserving both energy and network resources.

Tokenization and Message ID:
CoAP employs tokenization to track stateful interactions, allowing clients and servers to match requests with responses. Additionally, CoAP uses a Message ID to identify and correlate requests and responses, ensuring that the intended communication is correctly processed.

Proxying and Caching:
CoAP supports proxying, allowing intermediary devices to forward requests between clients and servers. It also incorporates caching mechanisms to enhance performance and reduce network traffic. These features are valuable in scenarios where scalability and optimization are essential.

Layers of CoAP

CoAP operates through a structured layering approach that ensures efficient communication within constrained environments. These layers collectively enable seamless interaction and data exchange between IoT devices and applications. The layers of CoAP include:

Application Layer:
At the topmost layer, the Application Layer defines the methods and interactions between clients and servers. It encompasses the request-response model and methods like GET, PUT, POST, and DELETE. This layer handles resource identification, manipulation, and the exchange of data and control messages.

Message Layer:
Below the Application Layer lies the Message Layer, responsible for constructing and parsing CoAP messages. It encapsulates the necessary information for communication, such as message type, method, token, and options. The Message Layer ensures that data is packaged and structured appropriately for transmission and processing.

Transport Layer:
The Transport Layer handles the actual movement of CoAP messages across the network. CoAP primarily uses the User Datagram Protocol (UDP) for its transport, providing a lightweight and connectionless mechanism suitable for constrained environments. The Transport Layer ensures the reliable delivery of messages based on CoAP's optional reliability mechanisms.

Observation Layer:
The Observation Layer introduces a unique aspect to CoAP—the ability to observe resources. It enables a client to "subscribe" to a resource and receive updates whenever that resource changes. This mechanism enhances efficiency by eliminating the need for continuous polling, conserving both energy and network resources.

Proxying and Caching Layer:
CoAP supports proxying and caching mechanisms to optimize communication. The Proxying Layer allows intermediary devices to forward CoAP messages between clients and servers, enhancing scalability and accessibility. The Caching Layer stores frequently accessed resources to reduce redundant communication, further optimizing the exchange of data.

These layers work in tandem, creating a structured and streamlined protocol that caters to the unique challenges of constrained networks and devices. By organizing the protocol's functionality into distinct layers, CoAP ensures efficient and effective communication between IoT devices while prioritizing resource conservation and adaptability.

Message Formats in CoAP

CoAP employs structured message formats to facilitate efficient communication between IoT devices and applications. These formats encapsulate the necessary information for transmitting requests, responses, and control messages.

There are four primary types of CoAP messages:

CON (Confirmable) Message:
CON messages are used for reliable communication, ensuring that the recipient sends an acknowledgment.
They contain a CoAP request or response and are sent by a client or server, respectively.
The sender expects an acknowledgment (ACK) from the recipient and retransmits the message until the ACK is received.

NON (Non-Confirmable) Message:
NON messages are used for faster communication without requiring acknowledgment.
They are similar to CON messages but don't demand an ACK.
NON messages are suitable for scenarios where real-time communication is prioritized over reliability.

ACK (Acknowledgment) Message:
ACK messages are sent in response to CON messages to acknowledge their receipt.
They indicate that the recipient has successfully received the message and is processing it.

RST (Reset) Message:
RST messages are sent to cancel a pending CON message that hasn't yet been acknowledged.
They are typically used when a receiver cannot or chooses not to process a pending message.

These message formats allow CoAP to efficiently encapsulate and convey information within the constrained environments typical of IoT scenarios. By structuring messages with specific fields, CoAP ensures that communication is streamlined, effective, and optimized for resource-limited devices and networks.

The Role of Methods in CoAP

In CoAP, methods play a pivotal role in defining the actions that can be performed on resources. Methods indicate the type of interaction a client wants to have with a resource on the server. CoAP supports four methods, similar to HTTP:

GET: The GET method is used to retrieve the current state or value of a resource from the server. It is a safe method that doesn't cause any modification on the server.

PUT: The PUT method is used to update or create a resource on the server with the provided data. It replaces the current state of the resource with the new data.

POST: The POST method is used to submit data to the server for processing. It can be used to create a new resource or trigger a specific action on the server.

DELETE: The DELETE method is used to request the removal of a resource from the server. It signifies the intent to remove the specified resource.

By offering these methods, CoAP provides a standardized way for clients to interact with resources, enabling actions such as retrieving data, updating information, triggering actions, and removing resources. These methods align with CoAP's resource-oriented architecture and contribute to efficient and consistent communication within IoT ecosystems.

Features of the CoAP Protocol

CoAP encompasses several distinctive features that set it apart and make it well-suited for constrained networks and IoT environments. One notable feature is its extension to HTTP, which enhances its compatibility and usefulness:

CoAP's Extension to HTTP:

CoAP extends the principles of HTTP to accommodate constrained networks and devices. This extension allows CoAP to leverage the familiarity of HTTP's methods (GET, PUT, POST, DELETE) and status codes (2xx success, 4xx client error, etc.), making it easier for developers to transition from HTTP-based systems to CoAP in IoT environments.

By adopting a similar structure to HTTP, CoAP ensures a gentle learning curve for those familiar with web protocols. This extension also contributes to interoperability, allowing CoAP-enabled devices and traditional web applications to communicate seamlessly.

In addition to this extension, other notable features of CoAP include its efficient use of UDP, support for resource observation, multicast communication, and tokenization for state tracking. CoAP's focus on lightweight messaging, reliability options, and streamlined message formats collectively make it an ideal protocol for communication in constrained networks, enabling IoT devices to interact effectively while conserving resources.

Real-life Applications of CoAP – CoAP Examples

CoAP's versatility shines through in various real-world scenarios within the realm of the Internet of Things (IoT). It addresses the unique challenges of IoT environments, where resource-constrained devices and efficient communication are paramount. Here are a few examples of how CoAP is utilized:

Smart Home Automation:
CoAP is extensively used in smart home automation scenarios. IoT devices such as thermostats, smart lights, and door sensors communicate with a central hub using CoAP. For instance, a CoAP-enabled smart thermostat could use GET requests to retrieve temperature data from the central hub or use PUT requests to update the desired temperature setting.

Industrial IoT (IIoT):
In industrial settings, CoAP facilitates communication among sensors, controllers, and actuators. For instance, in a manufacturing facility, CoAP-enabled sensors can send real-time data about machine performance to a central controller using CoAP POST requests. This data can then be analyzed for predictive maintenance.

Environmental Monitoring:
CoAP finds use in environmental monitoring applications. Sensors deployed in remote locations can use CoAP to send data about temperature, humidity, air quality, etc., to a central server. CoAP's lightweight nature and support for UDP make it suitable for energy-efficient communication in remote and off-grid scenarios.

Smart Agriculture:
In precision agriculture, CoAP-enabled sensors placed in fields can transmit soil moisture levels, weather data, and other relevant information to a central system. Farmers can receive real-time updates about their crops, enabling efficient resource management.

Healthcare Wearables:
CoAP is also used in healthcare wearables, such as fitness trackers and medical devices. These devices can communicate health data to smartphones or cloud servers using CoAP. For instance, a wearable heart rate monitor could periodically send heart rate data using CoAP to track a user's health status.

Smart Cities:
In smart city deployments, CoAP can connect various IoT devices like streetlights, waste bins, and parking sensors. For example, CoAP can be used to control streetlight intensity based on ambient light levels or to alert waste collection services when bins are full.

These real-world examples demonstrate CoAP's adaptability across diverse IoT applications. Its lightweight design, support for resource observation, and compatibility with HTTP principles make it an essential protocol for efficient and reliable communication in resource-constrained IoT environments.

Conclusion

In the intricate landscape of networking protocols, the Constrained Application Protocol (CoAP) emerges as a cornerstone in enabling seamless communication within the realm of constrained networks and devices. Designed with a specific focus on efficiency and adaptability, CoAP addresses the unique challenges posed by resource-constrained environments, making it a pivotal player in the Internet of Things (IoT) ecosystem.

CoAP embodies a minimalist approach, striking an optimal balance between functionality and resource conservation, which is particularly crucial in environments where resources like bandwidth, memory, and processing power are at a premium. CoAP's extension to HTTP enhances its compatibility and interoperability, allowing developers familiar with web protocols to transition seamlessly to CoAP in IoT applications.

From its foundation in lightweight UDP transport to its support for resource observation, multicast communication, and tokenization, CoAP's features are meticulously crafted to cater to the needs of constrained networks and IoT scenarios. By providing efficient data exchange while prioritizing resource conservation, CoAP seamlessly connects the intricate web of IoT devices, offering a streamlined framework for communication and interaction. As the IoT landscape continues to evolve, CoAP stands as a testament to the power of adaptability and efficiency in the realm of constrained networking protocols.
